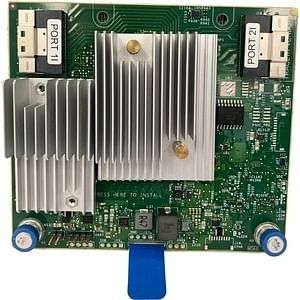

<p>The <strong>Broadcom MR416i-a Controller for HP</strong> is a high-performance network interface designed to provide robust connectivity for HP server environments. As organizations continue to demand faster and more reliable network connections, the MR416i-a controller stands out with its advanced features and capabilities. This article explores its specifications, benefits, applications, and installation processes, making it an invaluable resource for IT professionals and network administrators.</p><h2>Introduction to the Broadcom MR416i-a Controller</h2><p>The <strong>Broadcom MR416i-a Controller</strong> is engineered for enterprise-level data centers, delivering exceptional network performance and efficiency. This controller is compatible with various HP ProLiant servers and is designed to support diverse networking needs. With its advanced features, the MR416i-a controller is ideal for organizations seeking to optimize their networking infrastructure.</p><h2>Key Features of the Broadcom MR416i-a Controller</h2><h3>High-Speed Connectivity</h3><p>The Broadcom MR416i-a provides high-speed Ethernet connectivity, capable of supporting speeds up to 10 Gbps. This speed is crucial for handling large data transfers, ensuring minimal latency and increased throughput.</p><h3>Advanced Offloading Capabilities</h3><p>The controller incorporates advanced offloading technologies, such as TCP/IP offloading and checksum offloading. These features help reduce CPU utilization, allowing servers to allocate more resources to critical tasks and improving overall system performance.</p><h3>Dual-Port Design</h3><p>With its dual-port configuration, the MR416i-a controller enables network redundancy and load balancing. Organizations can configure these ports to ensure high availability and uninterrupted network services, even during maintenance or hardware failures.</p><h3>iSCSI and FCoE Support</h3><p>The controller supports both iSCSI (Internet Small Computer System Interface) and FCoE (Fibre Channel over Ethernet), making it suitable for various storage networking applications. This dual functionality simplifies management and enhances storage efficiency by using a single Ethernet infrastructure.</p><h3>Energy Efficiency</h3><p>Designed with energy efficiency in mind, the Broadcom MR416i-a controller minimizes power consumption while delivering optimal performance. This focus on efficiency contributes to lower operational costs and helps organizations reduce their carbon footprint.</p><h3>Compatibility with HP Servers</h3><p>The MR416i-a controller is specifically designed for compatibility with HP ProLiant servers, ensuring seamless integration and optimal performance. This compatibility simplifies the deployment process and enhances the overall reliability of the network infrastructure.</p><h2>Technical Specifications</h2><div><table border="0" cellpadding="0" cellspacing="0" width="391" style="width: 389px;">



    <tbody>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl65" width="163" style="text-align: center; padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px; width: 162px;">Feature</td>
            <td class="xl65" width="228" style="text-align: center; padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; width: 227px;">Specification</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Model</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">Broadcom MR416i-a Controller</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Form Factor</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">PCIe 3.0</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Ports</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">2 x 10 GbE RJ-45</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Maximum Data Rate</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">10 Gbps per port</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Supported Protocols</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">TCP/IP, iSCSI, FCoE</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Offloading Features</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">TCP/IP Offload, Checksum Offload</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">MTU Support</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">Up to 9000 bytes (Jumbo frames)</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Power Consumption</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">10 W (typical)</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Dimensions</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">6.6 x 2.7 x 0.8 inches (16.8 x 6.9 x 2.0 cm)</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Weight</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">Approximately 0.5 lbs (0.23 kg)</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Operating Temperature</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">32°F to 122°F (0°C to 50°C)</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Warranty</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">1-year limited warranty</td>
        </tr>
        <tr height="20" style="height: 20px;">
            <td height="20" class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap; height: 20px;">Conformance Standards</td>
            <td class="xl66" style="padding-top: 1px; padding-right: 1px; padding-left: 1px; color: black; font-size: 15px; font-weight: 400; font-style: normal; text-decoration: none; font-family: Calibri, sans-serif; vertical-align: bottom; white-space: nowrap;">CE, FCC, UL, RoHS compliant</td>
        </tr>

    </tbody>
</table></div><h2>Installation Process</h2><p>Installing the <strong>Broadcom MR416i-a Controller</strong> is straightforward and can be accomplished by following these steps:</p><h3>Step 1: Prepare Your Server</h3><p>Before installation, ensure that your server is powered off and unplugged to prevent any damage to the components.</p><h3>Step 2: Locate the PCIe Slot</h3><p>Open your server chassis and find an available PCIe slot. The MR416i-a controller is designed to fit standard PCIe slots.</p><h3>Step 3: Insert the Controller</h3><p>Carefully insert the <strong>Broadcom MR416i-a Controller</strong> into the chosen PCIe slot. Ensure that it is securely seated without applying excessive force.</p><h3>Step 4: Secure the Controller</h3><p>After inserting the controller, use screws (if provided) to secure it to the chassis. This helps prevent any movement or disconnection during operation.</p><h3>Step 5: Close the Chassis</h3><p>Once the controller is secured, close the server chassis and reconnect all power and data cables.</p><h3>Step 6: Install Drivers</h3><p>Power on the server and install the appropriate drivers for your operating system. You can download the drivers from the Broadcom or HP website.</p><h3>Step 7: Configure Network Settings</h3><p>After installing the drivers, configure the network settings for the MR416i-a Controller. This configuration may include setting up IP addresses, subnet masks, and other networking parameters.</p><h3>Step 8: Test Network Connectivity</h3><p>Once configuration is complete, test the network connectivity to ensure the controller is functioning correctly. You can use tools like ping or network diagnostic utilities to verify connectivity.</p><h2>Practical Applications of the Broadcom MR416i-a Controller</h2><h3>1. Data Centers</h3><p>In data center environments, the <strong>Broadcom MR416i-a Controller</strong> is crucial for providing the high-speed connectivity required to handle large volumes of data. Its dual-port design enhances bandwidth and redundancy, ensuring continuous network availability for critical applications.</p><h3>2. Virtualized Environments</h3><p>The controller is well-suited for virtualized environments, enabling multiple virtual machines to efficiently share the same physical network resources. This capability improves resource utilization and overall performance.</p><h3>3. Cloud Computing</h3><p>Organizations utilizing cloud services can benefit from the MR416i-a Controller's high-speed connectivity, allowing for rapid data transfer between on-premises infrastructure and cloud environments.</p><h3>4. High-Performance Computing (HPC)</h3><p>In HPC applications, where performance and speed are paramount, the Broadcom MR416i-a Controller delivers the necessary throughput for processing complex calculations and large datasets efficiently.</p><h3>5. Network Storage Solutions</h3><p>With support for iSCSI and FCoE, the MR416i-a Controller can be deployed in network storage solutions, enabling organizations to streamline their storage architecture while reducing costs.</p><h2>Comparison with Other Broadcom Controllers</h2><p>When considering a network controller, it's essential to compare different options to find the best fit for your needs. Here's how the <strong>Broadcom MR416i-a Controller</strong> compares to other Broadcom controllers:</p><h3>Broadcom BCM57810S Controller</h3><ul><li><strong>Performance</strong>: Both controllers deliver high-speed connectivity, but the BCM57810S is optimized for server virtualization.</li><li><strong>Ports</strong>: The MR416i-a features two ports, while the BCM57810S may offer additional ports for increased bandwidth.</li><li><strong>Applications</strong>: The MR416i-a is suitable for general data center use, while the BCM57810S is specifically designed for virtualized environments.</li></ul><h3>Broadcom BCM57416 Controller</h3><ul><li><strong>Speed</strong>: The BCM57416 also supports 10 Gbps Ethernet connectivity, making it a direct competitor to the MR416i-a.</li><li><strong>Features</strong>: The BCM57416 may offer additional advanced features, such as enhanced offloading capabilities and lower latency.</li><li><strong>Cost</strong>: The pricing of both controllers may vary based on features and performance, with the MR416i-a typically being a cost-effective choice.</li></ul>
