The Panasonic Toughbook FZ-40 MK1 is a rugged laptop built for extreme environments, offering reliability and high performance. However, upgrading its memory to 16GB RAM can significantly boost speed, efficiency, and overall system performance. In this blog, we’ll explore the benefits of upgrading to 16GB RAM, the specifications, and a step-by-step guide on how to install it.
If you rely on your Panasonic FZ-40 MK1 for demanding tasks such as data processing, video editing, or multitasking between multiple applications, upgrading to 16GB RAM can provide:
Faster application loading times
Reduced lag when switching between programs
Enhanced system stability
Seamless operation of multiple browser tabs and applications
Faster response time for software like CAD, video editing, and programming tools
Enhanced ability to handle large datasets and files
Reduced crashes and system slowdowns
Compatibility with modern and upcoming software updates
Ensures longevity and better resale value

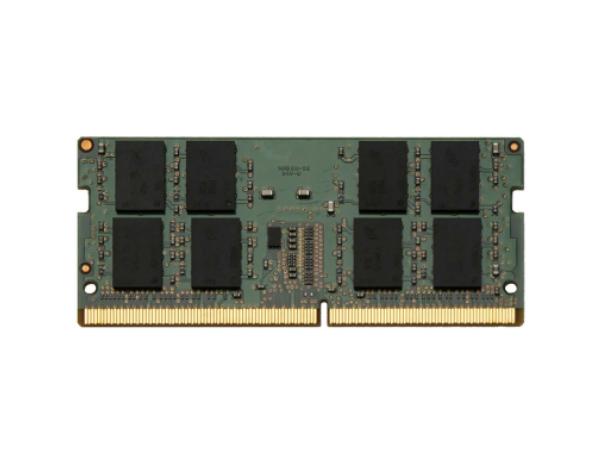

When upgrading the RAM for Panasonic Toughbook FZ-40 MK1, ensure compatibility by choosing memory with the following specifications:
Memory Type: DDR4 SDRAM
Capacity: 16GB
Speed: 3200MHz (or as supported by the device)
Form Factor: SO-DIMM (Small Outline Dual In-line Memory Module)
Voltage: 1.2V
ECC Support: Non-ECC (unless otherwise specified for rugged applications)
Compatibility: Must be compatible with the Toughbook FZ-40 MK1 motherboard
Upgrading the RAM is a simple process that can be done in a few steps:
Phillips-head screwdriver
Anti-static wrist strap (recommended)
Soft cloth to place the laptop on
Shut down the laptop completely.
Unplug all connected power sources.
Remove the battery for safety.
Flip the Toughbook FZ-40 MK1 upside down.
Locate the RAM compartment cover.
Use a screwdriver to carefully remove the screws and take off the cover.
Gently spread apart the retention clips holding the existing RAM.
Carefully pull out the old RAM module.
Align the new RAM module with the slot.
Insert it at a 45-degree angle and press it down firmly until it clicks into place.
Secure the RAM compartment cover with screws.
Reinstall the battery and connect power.
Turn on the laptop and check if the system detects the new RAM by navigating to Settings > System > About or using Task Manager under the Performance tab.
A: You can check the official Panasonic website, your user manual, or enter BIOS settings to verify the maximum supported RAM capacity.
A: Some models support up to 32GB or more. Check your system’s specifications to confirm expandability.
A: Generally, upgrading RAM does not void the warranty, but it’s best to check with Panasonic’s warranty policy before making modifications.
A: Try reseating the RAM module, ensure compatibility, and update your BIOS if necessary.
