Connect an hdmi laptop or desktop to a displayport monitor, using this compact,

Modern laptops and ultrabooks are often equipped with HDMI ports, while many high-end monitors support DisplayPort (DP) for better refresh rates and resolution support. If you have an HDMI-enabled laptop or ultrabook and need to connect it to a DisplayPort (DP) monitor, you may face compatibility issues due to the different signal types these ports use. This guide will explore the best ways to bridge this gap effectively using HDMI to DP adapters, cables, and converters.

Understanding HDMI and DisplayPort

HDMI (High-Definition Multimedia Interface)

HDMI is a widely used audio-video interface designed primarily for consumer electronics such as TVs, laptops, projectors, and gaming consoles. Key specifications include:

• Bandwidth: Varies by version (HDMI 1.4 – 10.2 Gbps, HDMI 2.0 – 18 Gbps, HDMI 2.1 – 48 Gbps)

• Resolution Support:

  • HDMI 1.4: Up to 4K @ 30Hz

  • HDMI 2.0: Up to 4K @ 60Hz

  • HDMI 2.1: Up to 8K @ 60Hz

• Audio Support: Supports multi-channel digital audio

• Connector Types: Standard, Mini HDMI, and Micro HDMI

DisplayPort (DP)

DisplayPort is a digital display interface commonly used for computer monitors, providing high bandwidth and better performance than HDMI for gaming and professional use. Key specifications include:

• Bandwidth:

  • DP 1.2: 17.28 Gbps

  • DP 1.4: 32.4 Gbps

  • DP 2.0: 80 Gbps

• Resolution Support:

  • DP 1.2: 4K @ 60Hz

  • DP 1.4: 8K @ 60Hz with DSC

  • DP 2.0: 16K @ 60Hz with DSC

• Audio Support: Similar to HDMI

• Connector Types: Standard DisplayPort and Mini DisplayPort

Why HDMI to DisplayPort Connection is Not Direct

HDMI and DP use different signaling technologies:

• HDMI is a consumer electronics standard that uses TMDS (Transition Minimized Differential Signaling).

• DisplayPort is a PC-centric standard that uses LVDS (Low Voltage Differential Signaling).

Since HDMI and DP signals are not directly compatible, a passive HDMI to DP cable won’t work. Instead, you need an active adapter or converter cable to change the signal type from HDMI (source) to DisplayPort (monitor).

Best Ways to Connect HDMI Laptop to DP Monitor

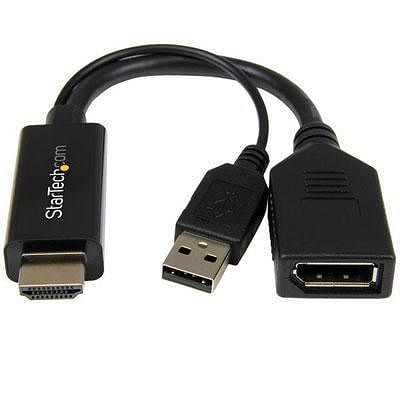

1. HDMI to DisplayPort Active Adapter

• Best For: Connecting an HDMI laptop to a DisplayPort monitor with an existing DP cable.

• How It Works: Converts HDMI signal into DisplayPort signal.

• Requirements: Usually requires additional power via USB.

• Supported Resolutions:

  • 1080p @ 60Hz

  • 1440p @ 60Hz

  • 4K @ 60Hz (depends on adapter quality)

• Example Products:

  • Cable Matters HDMI to DisplayPort Adapter

  • StarTech.com HDMI to DP Converter

2. HDMI to DisplayPort Converter Cable

• Best For: Direct HDMI-to-DP connection without extra cables.

• How It Works: A built-in converter chip converts HDMI signal to DisplayPort.

• Supported Resolutions:

  • 1080p @ 60Hz

  • 4K @ 30Hz (some models support 60Hz)

• Example Products:

  • Rankie HDMI to DisplayPort Cable

  • Benfei HDMI to DP Cable

3. USB-C to DisplayPort Adapter (For USB-C Laptops)

• Best For: Laptops with USB-C ports that support DisplayPort Alt Mode.

• How It Works: Converts USB-C output to DP signal.

• Supported Resolutions:

  • 4K @ 60Hz

  • 8K @ 60Hz (USB-C DP 1.4)

• Example Products:

  • Cable Matters USB-C to DisplayPort Adapter

  • Anker USB-C to DP Cable

Technical Specifications of HDMI to DP Adapters

Why Buy from Fazter?

Fazter offers high-quality, tested adapters and cables that ensure compatibility and durability. Benefits of buying from Fazter include:

• Certified HDMI to DP Adapters: Tested for full compatibility with laptops and monitors.

• Competitive Pricing: Affordable deals with discounts on bulk purchases.

• Reliable Performance: Only premium chipsets used for signal conversion.

• Customer Support: Expert assistance available for setup and troubleshooting.

• Fast Shipping: Quick delivery options available worldwide.

Best Deals on HDMI to DisplayPort Adapters and Cables

Here are some of the top deals available at Fazter:

1. Fazter HDMI to DisplayPort Adapter – $19.99 (Supports 4K @ 60Hz, USB-powered)

2. Fazter HDMI to DP Converter Cable (6ft) – $24.99 (Plug-and-play solution, no additional power needed)

3. Fazter USB-C to DP Cable (10ft) – $29.99 (Best for USB-C laptops, supports 8K @ 60Hz)

Final Thoughts

Connecting an HDMI-enabled ultrabook or laptop to a DP monitor is straightforward with the right adapter or converter cable. Since HDMI and DisplayPort use different signaling technologies, using an active HDMI to DP adapter or converter cable is necessary for seamless connectivity. Whether you need 1080p, 4K, or even 8K resolution support, Fazter provides high-quality adapters that ensure stable performance and durability.

For the best HDMI to DisplayPort adapters, check out Fazter’s latest deals and enhance your display experience today!
